ZYB127 mining hydraulic pump station control device

Product Features

It is programmable, and provides voice warning function (configurable), multiple communication interfaces, LCD display

(English/Chinese), and easy operation.

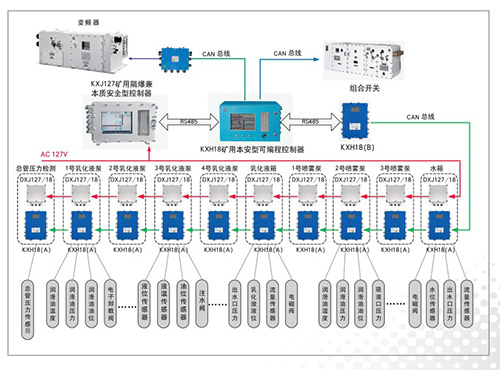

ZYB127 hydraulic pump station control device is mainly used to monitor status of the emulsion pump, spray pump, emulsion tank

and water tank. Meanwhile it is able to remotely and locally control these pumps. Its main functions are to start/stop pump station,

automatically offload emulsion pump, priority loop control pump, and automatically control liquid level. It also provides monitoring

and protection on temperature, pressure, liquid level and concentration within pump stations.

Digital / frequency input		Internal input contacts are used for both digital inputs (passive) and frequency inputs, up to 256 off inputs. The amount of digital inputs and frequency inputs is user configurable.
Analog input signal		4～20mA; PT100
Digital output		Digital output: internally the system offers up to 256 off digital (passive) outputs, including I.S. and non-I.S. digitaloutputs. The amount of digital outputs is user configurable. I.S. output capacity: DC 30V, 100mA; non-I.S.output capacity: AC 220V, 5A (resistive load).
Data transmission	Transmission mode	RS485	CAN	以太网
	Transmission rate	1200/2400/4800/9600bit/s(bps)
Display		10.4 inch color LCD display
Operation		24 keys keyboard, where the program key and the operation key are multi-functional
Power supply		AC127V，50Hz
