Variable frequency motor control device
Product Features
The device is programmable, and provides voice warning function (configurable), multiple communication interfaces, LCD display(English/Chinese), and easy operation. The control device is particularly designed for German Breuer variable frequency motors,guaranteeing the stability and real-time performance.
Uses

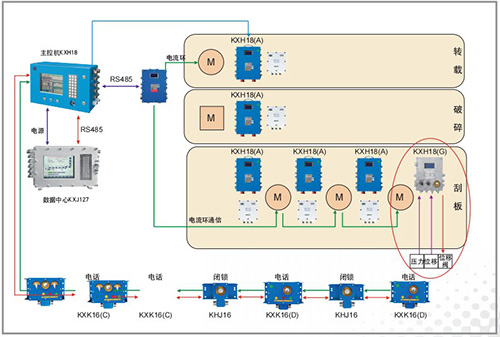

Variable frequency motor control device is suitable for large scale coal mines to start/stop/speed control underground AFC, stage loader, and crusher. Meanwhile it also monitors and protects these motors. The control device is particularly designed for German Breuer variable frequency motors, guaranteeing the stability and real-time performance.
Parameters
|
Digital / frequency input |
Internal input contacts are used for both digital inputs (passive) and frequency inputs, up to 256 off inputs. Theamount of digital inputs and frequency inputs is user configurable. |
|||
|
Analog input signal |
4～20mA PT100 |
|||
|
Digital output |
Digital output: internally the system offers up to 256 off digital (passive) outputs, including I.S. and non-I.S. digitaloutputs. The amount of digital outputs is user configurable. I.S. output capacity: DC 30V, 100mA; non-I.S.output capacity: AC 220V, 5A (resistive load). |
|||
|
Data transmission |
Transmission mode |
RS485 |
CAN |
以太网 |
|
Transmission rate |
1200/2400/4800/9600bit/s(bps) |
|||
|
Display |
10.4 inch color LCD display |
|||
|
Operation |
24 keys keyboard, where the program key and the operation key are multi-functional. |
|||
|
Power supply |
AC127V，50Hz |
|||
